DECK MOUNTED - VERTICAL

VERTICAL SMITH BERGER MD-1124

Where to find VERTICAL SMITH BERGER MD-1124 in Seattle

Image for reference only
Actual item may look different
Click on image for larger view

Where to find VERTICAL SMITH BERGER MD-1124 in Seattle Where to find VERTICAL SMITH BERGER MD-1124 in Seattle

Click on above thumbnails for alternate view

KEY: MD:1124R

Manufacturer: SMITH BERGER MAR

Model: MD-1124

Daily: Request Quote

Instructions: <Click Here>

Quantity:

Additional Information

  • STANDARD FEATURES
  • Designed for Breaking Strength of 2 (52 mm) EIPS Wire Rope, 396,000 LBS, with 90 Wrap on the Sheave
  • Cast Steel Sheave with Hardened Rope Groove for Longer Life
  • Sealed Grease Lubricated Tapered Roller Bearings in Sheave
  • Weld Down Mounting Base
  • Epoxy Primer Coating
  • Weight: 625 lbs.

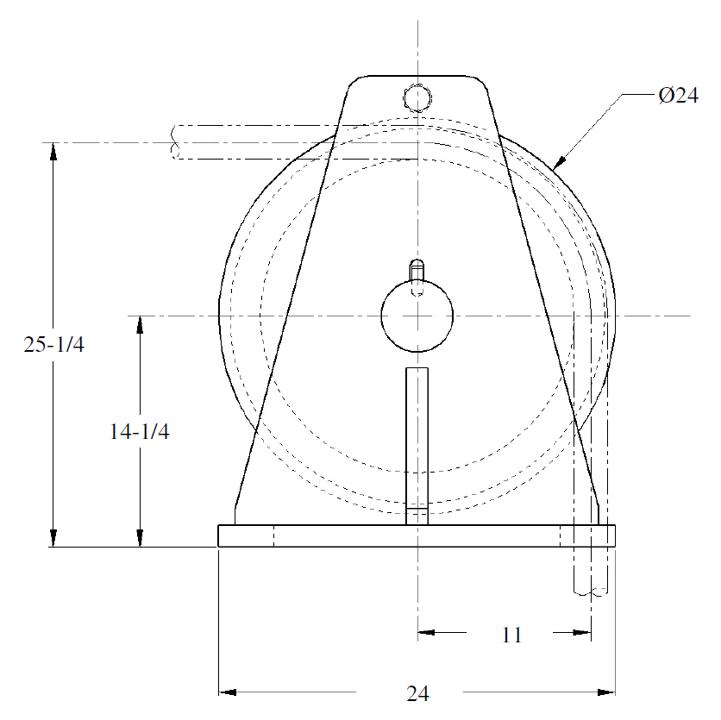

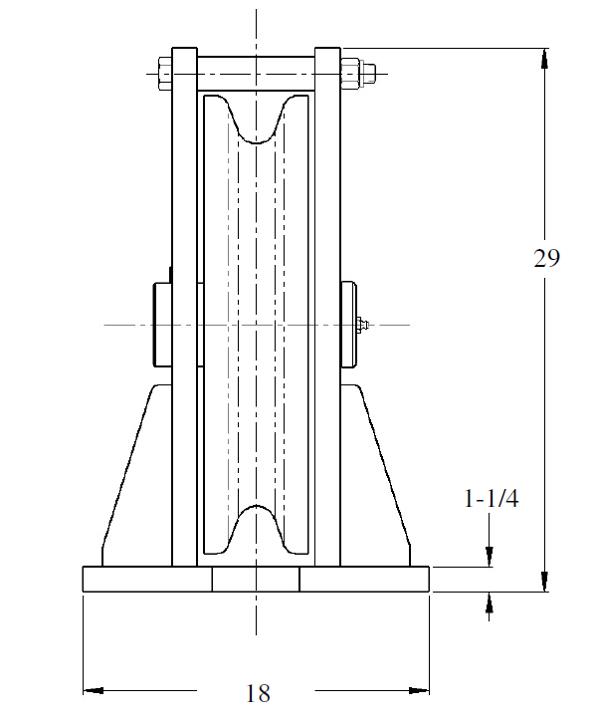

  • Approx. Dimensions: L=24" x W=18" x H=29"
