NEW - PULLMASTERS H SERIES

PULLMASTER H18-3-101-1 HYDRAULIC WINCH


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: H18:3:101:1

Manufacturer: PULLMASTER

Model: H18-3-101-1

Sale Price: Request Quote

Instructions: <Click Here>

Quantity:

Additional Information

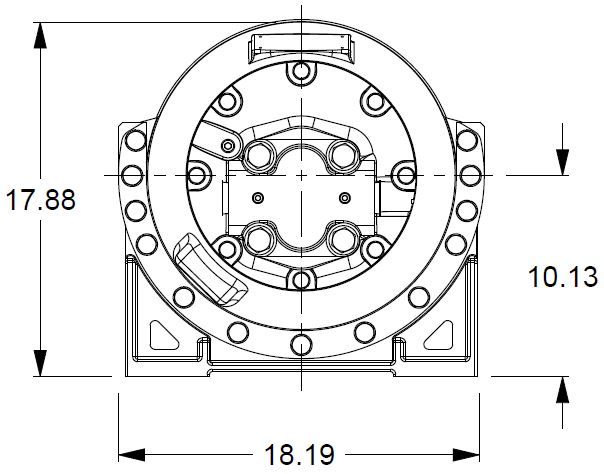

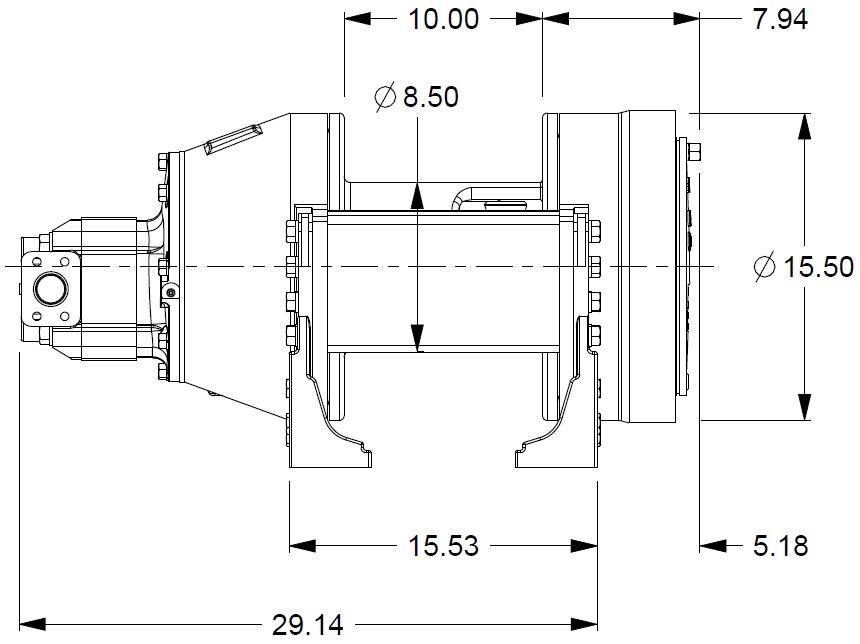

18,000 lbs. Capacity Rapid Reverse Winch Automatic Brake, CW Rotation, Internal Circulation Flow. Wire Rope Capcity 161' x 3/4 Drum Dimension 15.5" Flange x 10.00" Length x 8.5" Barrel. Overall Dimensions: 34-3/8"L x 17-7/8"H x 18-1/8" W Weight: 766lbs
LINE PULL:
LAYER 1 - (PAY-IN) 18,000LBS @ 122FPM (PAY-OUT) 3,913LBS @ 561FPM
LAYER 2 - (PAY-IN) 15,500LBS @ 142FPM (PAY-OUT) 3,370LBS @ 653FPM
LAYER 3 - (PAY-IN) 13,600LBS @ 162FPM (PAY-OUT) 2,957LBS @ 745FPM
LAYER 4 - (PAY-IN) 12,100LBS @ 182FPM (PAY-OUT) 2,630LBS @ 837FPM
Performance is based on 76 gpm @ 2300 psi with .75" rope (Maximum rope capacity)
