BARGE - P2 7'

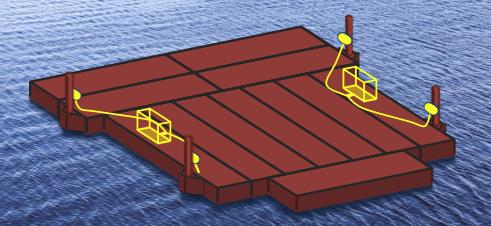

P2-7' 80'X100' 250T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P27250TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 250 ton Crawler
Barge Type: P2-7
Working Weight: 515,000 lbs.
Boom Length: 200 ft.
Picking Weight: 105,000 lbs.
Pick Radius: 60 ft.
Pick Height: 191 ft.
Crane Mats: 44,800 lbs.
Misc Weight: 160,000 lbs.
Total Deck Payload: 824,800 lbs.
Accessory Weight: 20,720 lbs.
PLATFORM:
Qty (13) 40X10X7 Barges: 604,800 lbs.
Qty (5) 20X10X7 Barges: 91,600 lbs.
Qty (4) P2-7 Spud Pockets: 16,000 lbs.
Total Hull Weight: 1,389,920 lbs.
ACCESSORIES:
Qty (360') Handrail: 4320 lbs.
Qty (2) HPU PMW: 9,600 lbs.
Qty (4) Umbilical: 400 lbs.
Qty (4) PMW: 6,400 lbs.
Accessory Weight: 20,720 lbs.
HYDROSTATICS:
Average Platform Draft: 3.59 ft. freshwater
Waterplane Area: 6,200sq ft.
Vertical Center of Buoyancy: 1.80 ft.
Stability Metrics:
Working over end of platform: Trim Moment: 6,345,316 ft-lbs.
Working over side of platform: List Moment: 6,314,400 ft-lbs.
List Angle (deg) Port to Starboard: 2.0
Trim Angle (deg) Bow to Stern: 2.2

* Please call us with any questions about our p2 7 foot 80 foot x100 foot 250t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
