BARGE - P2 7'

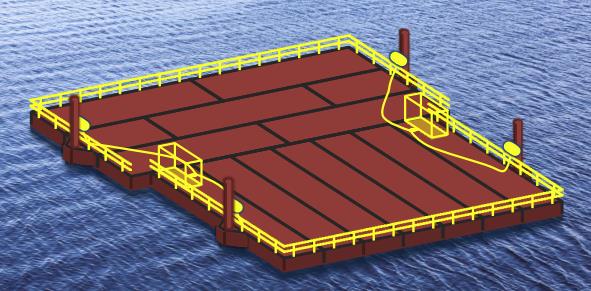

P2-7' 70'X80' 165T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P27165TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 165ton Crawler
Barge Type: P2-7
Working Weight: 345,000 lbs.
Boom Length: 150 ft.
Picking Weight: 68,000 lbs.
Pick Radius: 60 ft.
Pick Height: 137 ft.
Crane Mats: 40,320 lbs.
Misc Weight: 248,000 lbs.
Total Deck Payload: 701,320 lbs.
Accessory Weight: 19,880 lbs.
PLATFORM:
Qty (12) 40X10X7 Barges: 403,200 lbs.
Qty (2) 20X10X7 Barges: 36,640 lbs.
Qty (4) P2-7 Spud Pockets: 16,000 lbs.
Total Hull Weight: 455,840 lbs.
HYDROSTATICS:
Average Platform Draft: 3.63 ft. freshwater
Waterplane Area: 5,200 sq ft.
Vertical Center of Buoyancy: 1.81 ft.
Stability Metrics:
Working over end of platform: Trim Moment: -4,109,538 ft-lbs.
Working over side of platform: List Moment: 4,089,600 ft-lbs.
List Angle (deg) Port to Starboard: 1.8
Trim Angle (deg) Bow to Stern: -2.1

* Please call us with any questions about our p2 7 foot 70 foot x80 foot 165t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
