BARGE - P2 5'

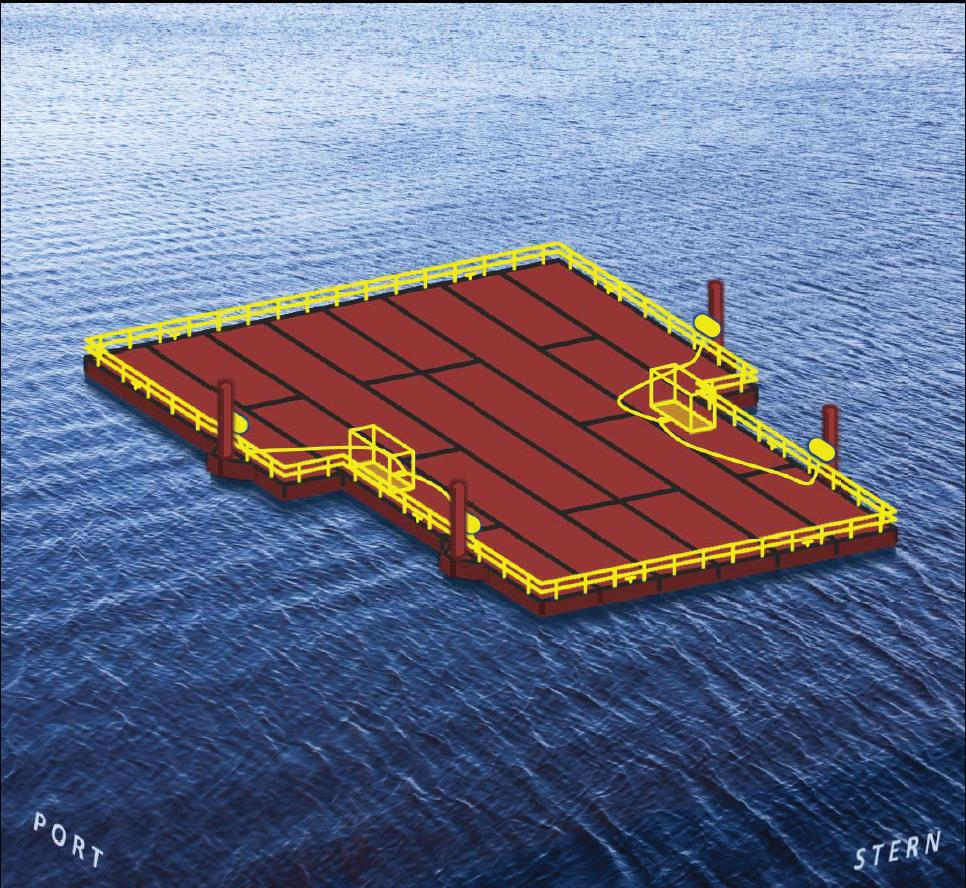

P2-5' 80'X80' 165T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P25165TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 165ton Crawler
Barge Type: P2-5
Working Weight: 345,000 lbs.
Boom Length: 150 ft.
Picking Weight: 68,000 lbs.
Pick Radius: 60 ft.
Pick Height: 137 ft.
Crane Mats: 40,320 lbs.
Misc Weight: 18,000 lbs.
Total Deck Payload: 471,320 lbs.
Accessory Weight: 20,720 lbs.
PLATFORM:
Qty (10) 40X10X5 Barges: 261,500 lbs.
Qty (8) 20X10X5 Barges: 112,800 lbs.
Qty (4) P2-5' - Spud Pocket: 12,400 lbs.
Total Hull Weight: 386,700 lbs.
HYDROSTATICS:
Average Platform Draft: 2.51 ft. freshwater
Waterplane Area: 5,600 sq ft.
Vertical Center of Buoyancy: 1.26 ft.
Stability Metrics:
Working over end of platform: Trim Moment: -4,274,257 ft-lbs.
Working over side of platform: List Moment: 4,084,800 ft-lbs.
List Angle (deg) Port to Starboard: 1.7
Trim Angle (deg) Bow to Stern: -1.5
ACCESSORIES:
Qty (2) HPU PMW: 9,600 lbs.
Qty (4) PMW: 6,400 lbs.
Qty (4) Umbilical hose: 400 lbs.
Qty (320) Handrail(ft): 3,840 lbs.
Qty (8) Deck Cleat: 480 lbs.

* Please call us with any questions about our p2 5 foot 80 foot x80 foot 165t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
