BARGE - P2 5'

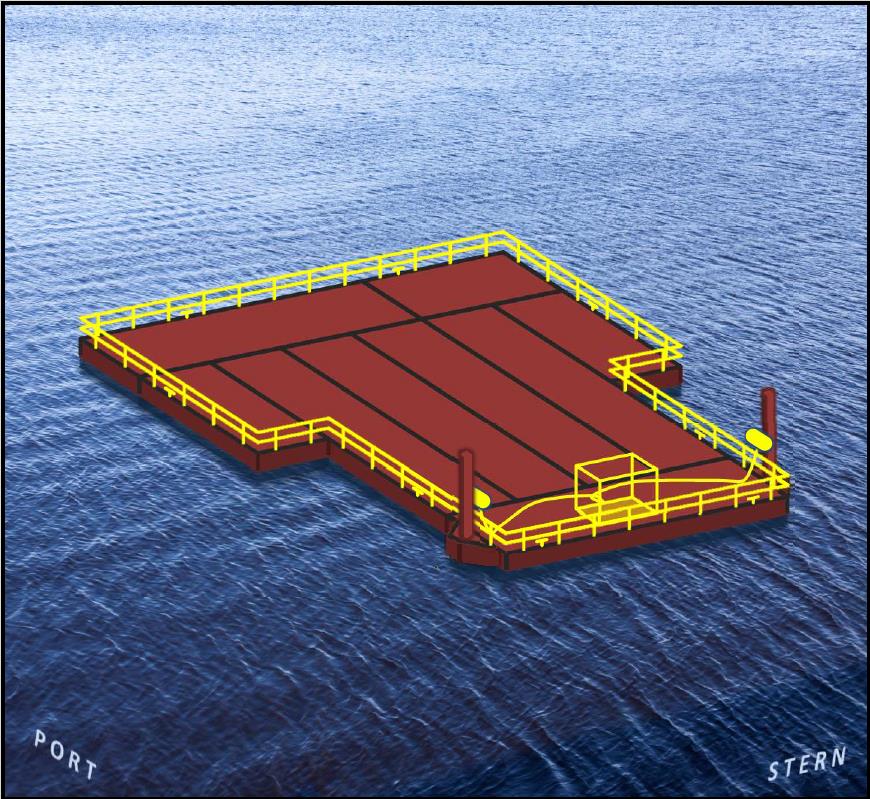

P2-5' 60'X60' 80T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P2580TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 80ton Crawler
Barge Type: P2-5
Working Weight: 170,000 lbs.
Boom Length: 100 ft.
Picking Weight: 27,500 lbs.
Pick Radius: 45 ft.
Pick Height: 89 ft.
Crane Mats: 30,720 lbs.
Misc Weight: 26,000 lbs.
Total Deck Payload: 254,220 lbs.
Accessory Weight: 11,560 lbs.
PLATFORM:
Qty (6) 40X10X5 Barges: 130,750 lbs.
Qty (3) 20X10X5 Barges: 28,200 lbs.
Qty (2) P2-5' - Spud Pockets: 6,200lbs.
Total Hull Weight: 205,400 lbs.
HYDROSTATICS:
Average Platform Draft: 2.52 ft. freshwater
Waterplane Area: 3,000 sq ft.
Vertical Center of Buoyancy: 1.26 ft.
Stability Metrics:
Working over end of platform: Trim Moment: -1,545,500 ft-lbs.
Working over side of platform: List Moment: -1,247,100 ft-lbs.
List Angle (deg) Port to Starboard: -1.9
Trim Angle (deg) Bow to Stern: -1.8
ACCESSORIES:
Qty (1) HPU PMW: 4,800lbs.
Qty (2) PMW: 3,200 lbs.
Qty (2) Umbilical hose: 200lbs.
Qty (190): Handrail (ft.): 2,880lbs.
Qty (8) Deck Cleat: 480lbs.

* Please call us with any questions about our p2 5 foot 60 foot x60 foot 80t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
