BARGE - P2 5'

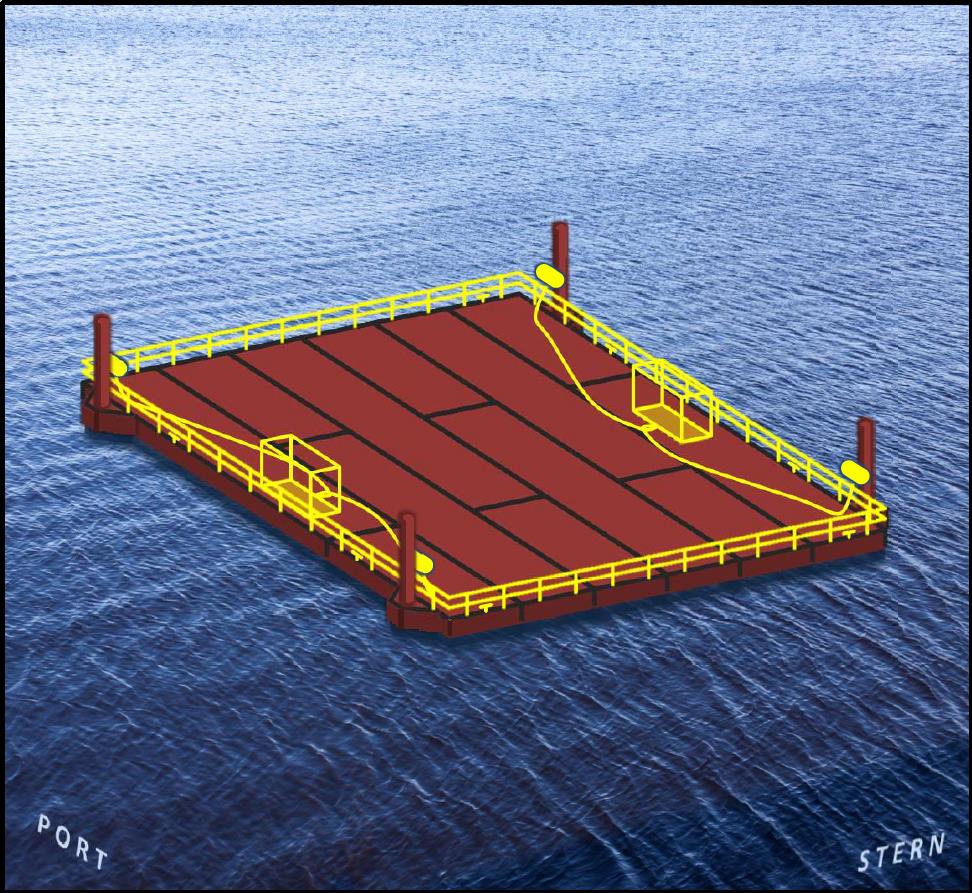

P2-5' 60'X60' 100T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P25100TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 100ton Crawler
Barge Type: P2-5
Working Weight: 210,000 lbs.
Boom Length: 110 ft.
Picking Weight: 37,000 lbs.
Pick Radius: 45 ft.
Pick Height: 100 ft.
Crane Mats: 30,720 lbs.
Misc Weight: 26,000 lbs.
Total Deck Payload: 303,720 lbs.
Accessory Weight: 19,760 lbs.
PLATFORM:
Qty (6) 40X10X5 Barges: 156,900 lbs.
Qty (6) 20X10X5 Barges: 84,600 lbs.
Qty (2) P2-5' - Spud Pockets: 12,400 lbs.
Total Hull Weight: 253,900 lbs.
HYDROSTATICS:
Average Platform Draft: 2.57 ft. freshwater
Waterplane Area: 3,600 sq ft.
Vertical Center of Buoyancy: 1.29 ft.
Stability Metrics:
Working over end of platform: Trim Moment: -1,684,200 ft-lbs.
Working over side of platform: List Moment: 1,669,800 ft-lbs.
List Angle (deg) Port to Starboard: 1.6
Trim Angle (deg) Bow to Stern: -1.6
ACCESSORIES:
Qty (2) HPU PMW: 9,600 lbs.
Qty (4) PMW: 6,400 lbs.
Qty (4) Umbilical hose: 400 lbs.
Qty (240): Handrail (ft.): 2,880 lbs.
Qty (8) Deck Cleat: 480 lbs.

* Please call us with any questions about our p2 5 foot 60 foot x60 foot 100t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
