BARGE - P2 5'

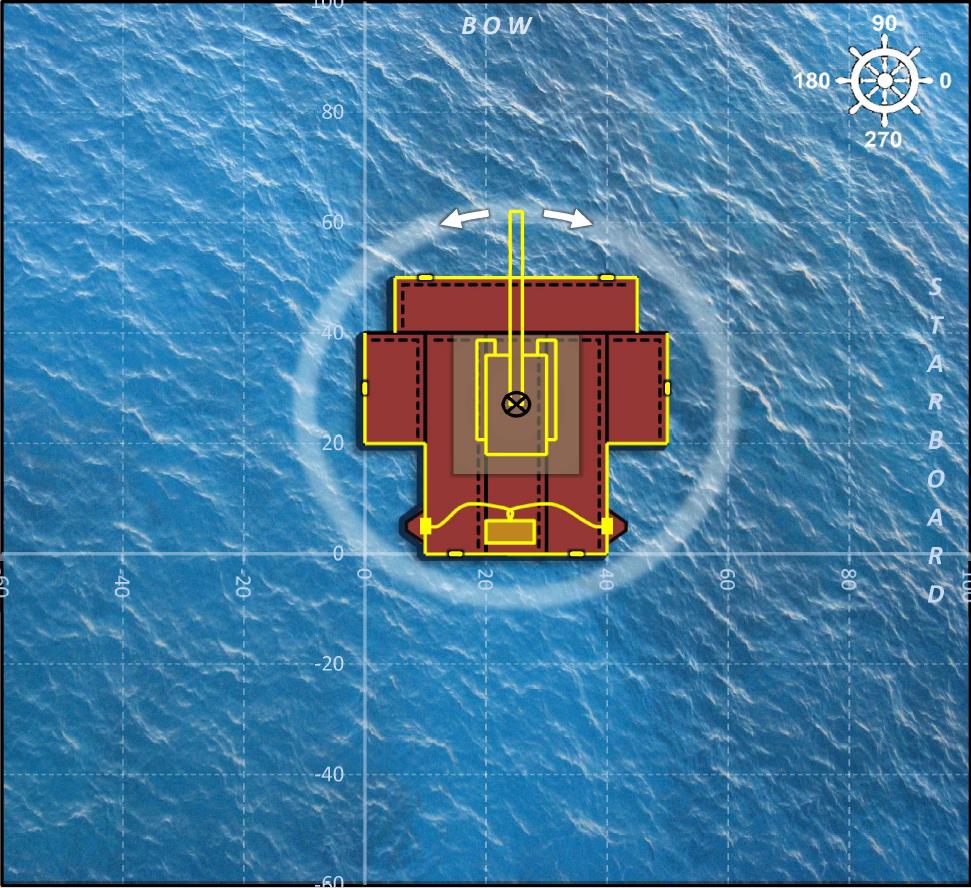

P2-5' 50'X50' 50T CRAWLER CRANE BARGE


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: P2550TONCRAWLER

Daily: Request Quote

Quantity:

Additional Information

CRANE: 50ton Crawler
Barge Type: P2-5
Working Weight: 103,000 lbs.
Boom Length: 80 ft.
Picking Weight: 15,000 lbs.
Pick Radius: 35 ft.
Pick Height: 72 ft.
Crane Mats: 19,200 lbs.
Misc Weight: 32,000 lbs.
Total Deck Payload: 169,200 lbs.
Accessory Weight: 10,840 lbs.
PLATFORM:
Qty (4) 40X10X5 Barges: 104,600 lbs.
Qty (2) 20X10X5 Barges: 28,200 lbs.
Qty (2) P2-5' - Spud Pockets: 6,200lbs.
Total Hull Weight: 139,000 lbs.
HYDROSTATICS:
Average Platform Draft: 2.56 ft. freshwater
Waterplane Area: 2,000 sq ft.
Vertical Center of Buoyancy: 1.28 ft.
Stability Metrics:
Working over end of platform: Trim Moment: -767,000 ft-lbs.
Working over side of platform: List Moment: -534,600 ft-lbs.
List Angle (deg) Port to Starboard: -1.9
Trim Angle (deg) Bow to Stern: -2.2
ACCESSORIES:
Qty (1) HPU PMW: 4,800lbs.
Qty (2) PMW: 3,200 lbs.
Qty (2) Umbilical hose: 200lbs.
Qty (190): Handrail (ft.): 2,280lbs.
Qty (6) Deck Cleat: 360lbs.

* Please call us with any questions about our p2 5 foot 50 foot x50 foot 50t crawler crane barge in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
