WINCHES - HYDRAULIC MOORING

MES-50 HYDRAULIC WINCH


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: MES50R

Daily: Request Quote

Instructions: <Click Here>

Quantity:

Additional Information

Anchor line mooring and spud lifting/lowering
Adjustable speed and pull from 25,000 50,000 lbs.
All features hydraulically driven, and joystick controlled
Band brake
Jaw clutch (for freewheeling)
Locking dog
Modular design
Sub-bases with fleeting sheaves to allow the wire to travel out the back at deck level.
Bare Drum Pull: 50,000 lbs. @ 50 FPM or 25,000 lbs. @ 100 FPM
Drum Capacity: 3,329' of 7/8" on 12 layers, 2,388' of 1" on 10 layers, 2,211' of 1-1/8" on 10 layers, 2,069 of 1-1/4" on 10 layers.
Anchor Wraps Req: 3 Minimum
Band Brake Capacity: 100% of Rated Linepull
Driveline Brake Capacity (Dog): 150% of Rated Linepull
Drum Size: Flange=44.5" Barrel=20" Length=32"

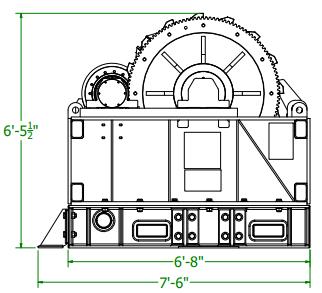

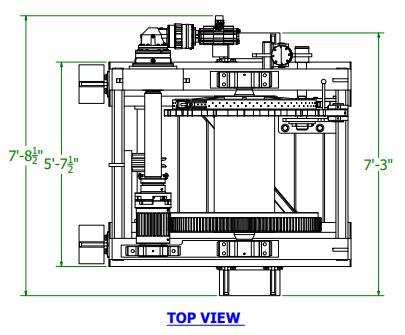

Approx. Dimensions: L=7'-6" x W=7'-8-1/2" x H=6'-5-1/2"
Approx. Weight: 12,000

* Please call us with any questions about our mes 50 hydraulic winch in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
