NEW - VERTICAL GUIDE SHEAVE

MD-1118-S VERTICAL GUIDE SHEAVE 1" WR


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: MD:1118:S

Manufacturer: SMITH BERGER MAR

Model: MD-1118-S

Sale Price: Request Quote

Instructions: <Click Here>

Quantity:

Additional Information

*SPECIAL*
STANDARD FEATURES
Designed for Breaking Strength of 1-1/2 (38 mm) EIPS Wire Rope, 228,000 LBS, with 90 Wrap on the Sheave
Cast Steel Sheave with Hardened Rope Groove for Longer Life
Sealed Grease Lubricated Tapered Roller Bearings in Sheave
Weld Down Mounting Base
Epoxy Primer Coating
Weight: 340 lbs.

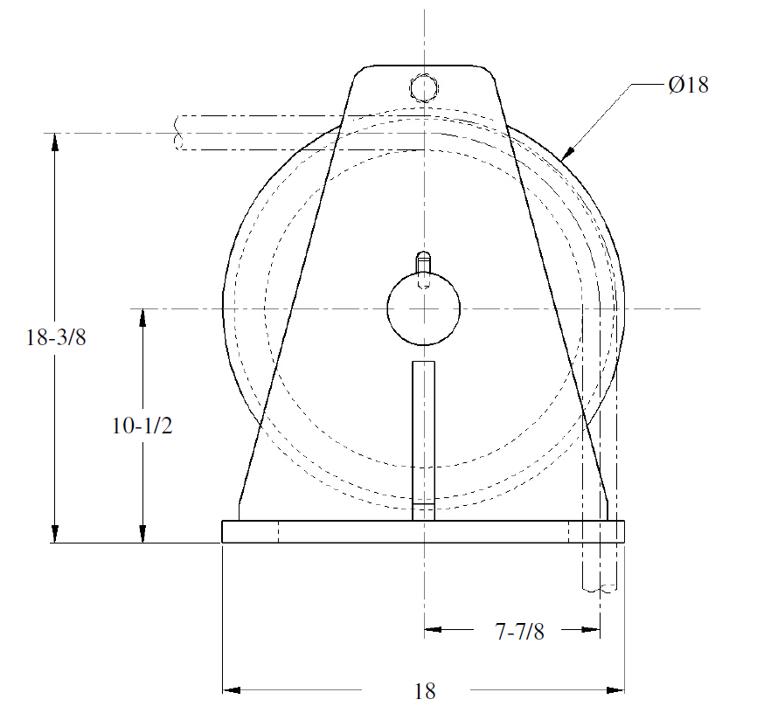

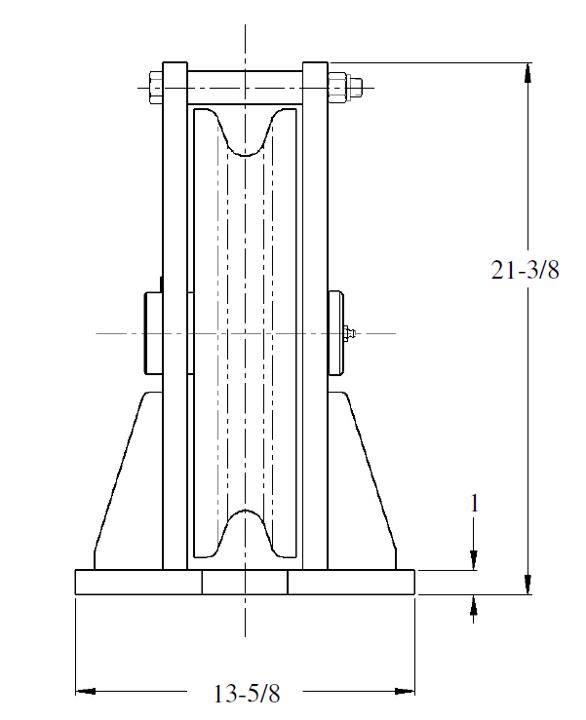

Approx. Dimensions: L=18" x W=13-5/8" x H=21-3/8"
OPTIONAL FEATURES
Customized Design to Suit Your Application
Multiple Sheaves
Stainless Steel or Nylon Sheaves
Bolt Down Mounting Base
Load Monitoring System
Three Coat Marine Paint System
Third Party Certification

* Please call us with any questions about our md 1118 s vertical guide sheave 1 inch wr in Belle Chasse LA, Seattle WA, Chesapeake VA, Williamstown NJ, and the East, West, and Gulf Coasts areas.
