NEW - HORIZONTAL GUIDE SHEAVE

HORIZONTAL SMITH BERGER MD-1224


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: MD:1224

Manufacturer: SMITH BERGER MAR

Model: MD-1224

Sale Price: Request Quote

Quantity:

Additional Information

STANDARD FEATURES
Designed for Breaking Strength of 2 (52 mm) EIPS Wire Rope, 396,000 LBS, with 90 Wrap on the Sheave
Cast Steel Sheave with Hardened Rope Groove for Longer Life
Grease Lubricated Bronze Bearings in Sheave
Weld Down Mounting Base
Epoxy Primer Coating
Weight: 975 lbs.

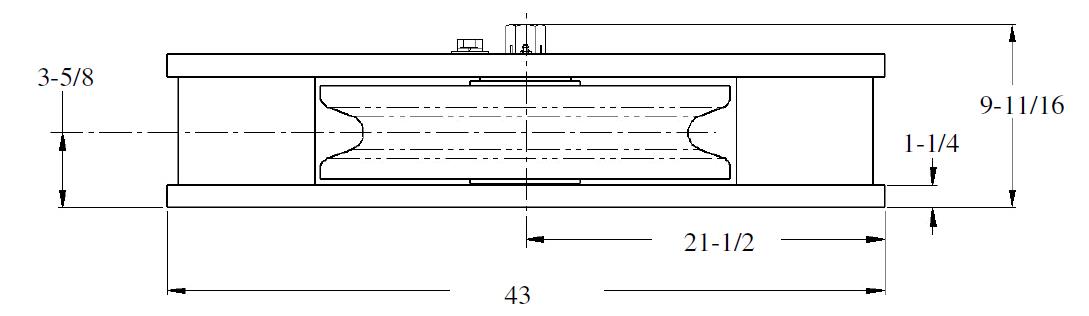

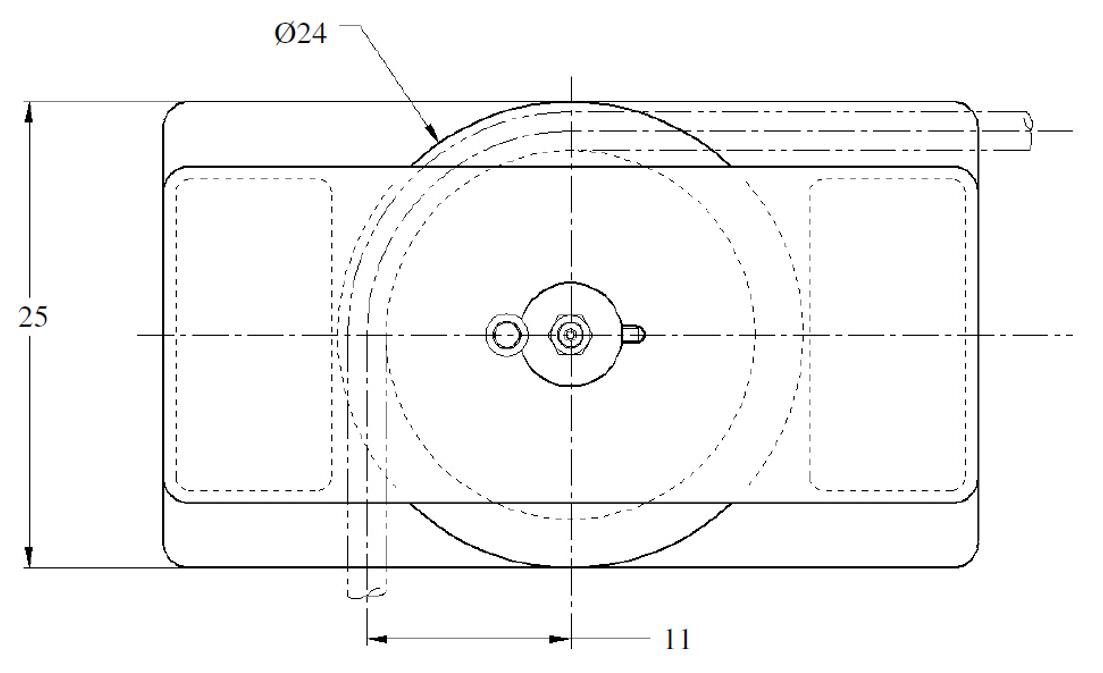

Approx. Dimensions: L=43" x W=25" x H=8-1/2"
OPTIONAL FEATURES
Customized Design to Suit Your Application
Multiple Sheaves
Stainless Steel or Nylon Sheaves
Sealed Tapered Roller Bearings in Sheave
Bolt Down Mounting Base
Load Monitoring System
Three Coat Marine Paint System
Third Party Certification
