NEW - FAIRLEAD DECK MOUNTED

FAIRLEAD SMITH BERGER MD-612


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: MD:612

Manufacturer: SMITH BERGER MAR

Model: MD-612

Sale Price: Request Quote

Instructions: <Click Here>

Quantity:

Additional Information

STANDARD FEATURES
Designed for Breaking Strength of 1 (26 mm) EIPS Wire Rope,103,400 LBS, with 90 Wrap on the Sheave and 90 Rotation of Swivelhead
Cast Steel Sheave with Hardened Rope Groove for Longer Life
Sealed Grease Lubricated Tapered Roller Bearings in Sheave and Swivelhead
Weld Down Mounting Base
Removable Guide Roller
Epoxy Primer Coating
Weight: 495 lbs.

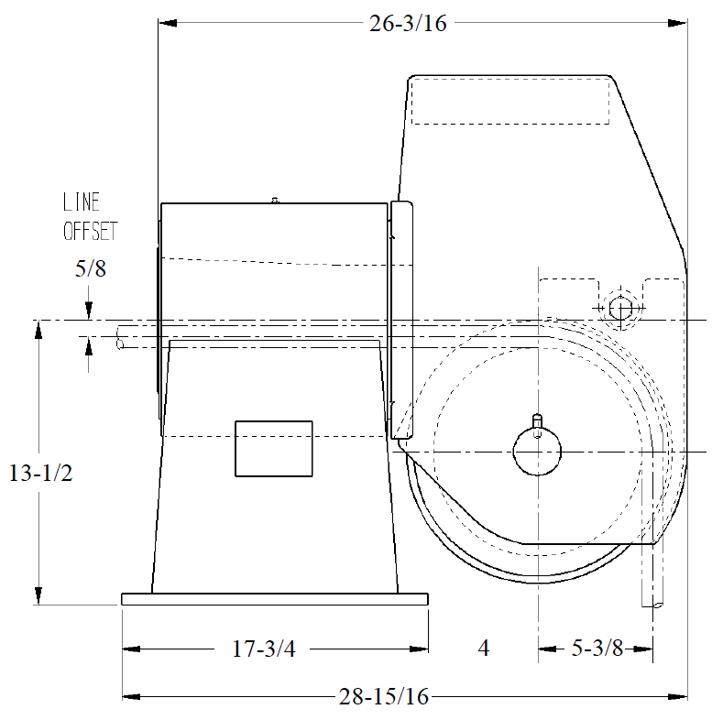

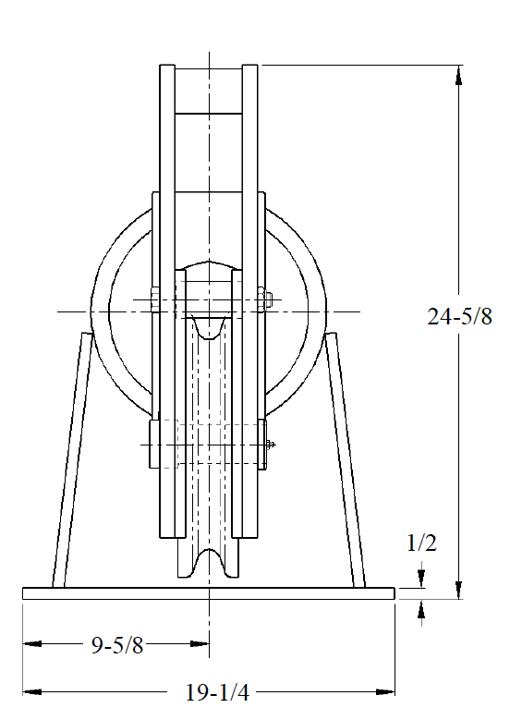

Approx. Dimensions: L=28-3/16" x W=19-1/4" x H=24-5/8"
OPTIONAL FEATURES
Customized Design to Suit Your Application
Tail Sheaves / Tail Rollers
Stainless Steel or Nylon Sheaves
Bolt Down Mounting Base
Load Monitoring System
Three Coat Marine Paint System
Third Party Certification
