WINCHES - HYDRAULIC MOORING

50K HYDRAULIC 4-POINT MOORING SYSTEM


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

KEY: 50K4POINT

Instructions: <Click Here>

Quantity:

Additional Information

Anchor line mooring and spud lifting/lowering
Adjustable speed and pull from 25,000 50,000 lbs.
All features hydraulically driven, and joystick controlled
Band brake
Jaw clutch (for freewheeling)
Locking dog
Modular design
Electric HPU (Provision of 480VAC/3ph/60Hz power to the HPU. Suitable for 125HP motor, direct on-line start.)
Sub-bases with fleeting sheaves to allow the wire to travel out the back at deck level.
Bare Drum Pull: 50,000 lbs. @ 50 FPM or 25,000 lbs. @ 100 FPM
Drum Capacity: 3,329' of 7/8" on 12 layers, 2,388' of 1" on 10 layers, 2,211' of 1-1/8" on 10 layers, 2,069 of 1-1/4" on 10 layers.
Anchor Wraps Req: 3 Minimum
Band Brake Capacity: 100% of Rated Linepull
Driveline Brake Capacity (Dog): 150% of Rated Linepull
Drum Size: Flange=44.5" Barrel=20" Length=32"

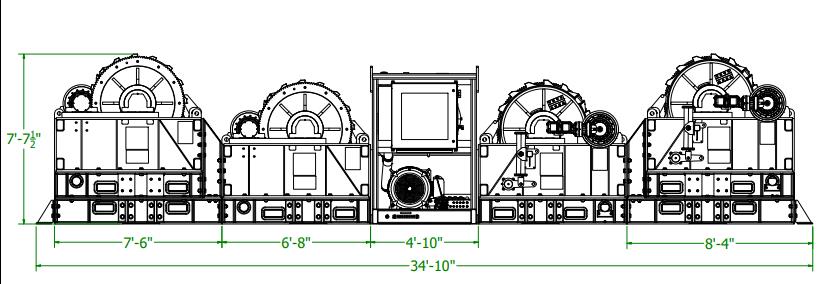

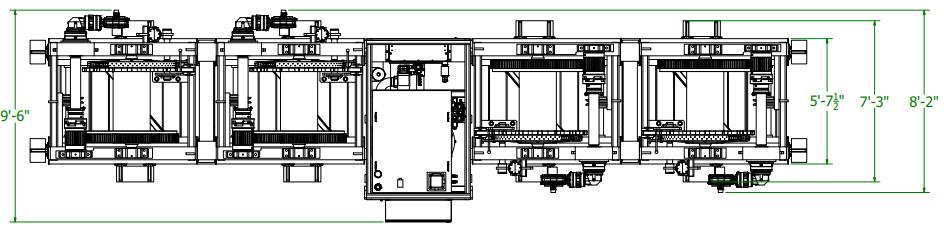

Approx. Dimensions: L=34'-10" x W=9'-6" x H=7'-7-1/2"
Approx. Weight: 74,950
